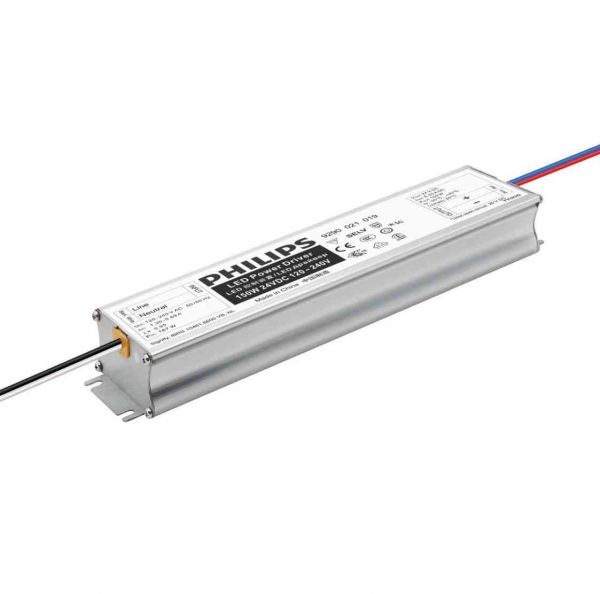

Philips LED Power Driver 150W 24VDC 120-240V

LxBxH: 230x60x34mm

Electrical output data Specification itemValueUnitCondition Regulation methodConstant Voltage Output voltage24VdcOutput voltage range: 23.5 ... 25.6VDC Output voltage max.26V Output current0.1...6.25A Output voltage ripple= 200mVpp Output power2.4...150W Line regulation= 0.1% Load regulation= 0.4% Turn-on delay= 0.15sWith Integrade engine 24VDC module at rated output power Output voltage rise time= 30ms Hold-up time= 10msElectrical input data Specification itemValueValueUnitCondition Rated input voltage range108...132202...254VacPerformance range Rated input voltage120230Vac Rated input frequency range47...6347...63HzPerformance range Rated input current1.30.69A@ rated output power @ rated input voltage Max. input current1.550.8A@ rated output power @ minimum performance input voltage Rated input power167161W@ rated output power @ rated input voltage Power factor0.990.97@ rated output power @ rated input voltage Total harmonic distortion412%@ rated output power @ rated input voltage Efficiency9193%@ rated output power @ rated input voltage Input voltage AC range108...132198...264VacSafety operational range Input frequency AC range45...6645...66HzSafety oProduct description Philips full-electronic constant voltage LED Power drivers are designed to operate 24VDC LED solutions used in general built-in applications such as refrigerated display lighting, retail display lighting and linear accent lighting. They are specifically designed to ensure the highest performance with maximum robustness combined with a long lifetime. Benefits •SELV operating voltages, ensuringsafety even if wiring or LED boardsbecome damaged •Energy savings through high efficiency •Ultimate robustness, offering peace of mind and lower maintenance costs •Easy to design-in and install •Long lifetime Features •Built-in use for Insulation Class I and II applications •Global approbations and certifications •Stable output voltage •Wide ambient temperature range •Protection against overpower and overvoltage •Output short-circuit shutdown feature with automatic restart Application •Retail display lighting, linear accent lighting and refrigerated display lighting •Shelf lighting •Cove lighting •Facade accent lighting •Coolers and freezers
